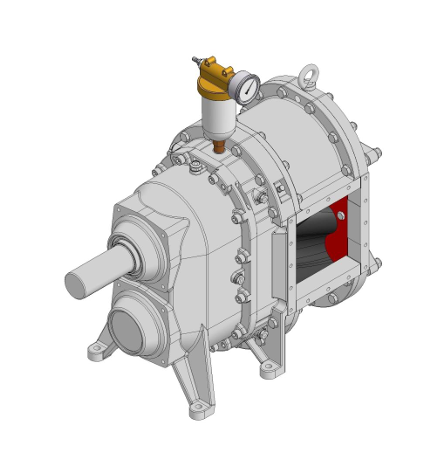

VX186Q
Gearbox housing and accessories Position 1-16
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
1	PGP.A019.T3	Gearbox housing				1	1	1	1	1	1
2	NSI.091	Hexagon socket head cap screw	M12 x 45	DIN 912		12	12	12	12	12	12
3	NSP.017	Dowel pin	13 x 40	DIN 1481		4	4	4	4	4	4
3	NSP.002	Dowel pin	8 x 40	DIN 1481		4	4	4	4	4	4
4		Circlip	95 x 5 x 0.98			2	2	2	2	2	2
5	DWD.049.HNB	Radial shaft seal ring	HNBR	For motor shaft		1	1	1	1	1	1
5	DWD.049.VI	Radial shaft seal ring	FPM	For motor shaft		1	1	1	1	1	1
5	DWD.049.HNB	Radial shaft seal ring	HNBR	For PTO shaft		2	2	2	2	2	2
5	DWD.049.VI	Radial shaft seal ring	FPM	For PTO shaft		2	2	2	2	2	2
6	6 NIR.014	Inner ring	JR 65 x 72 x 25	For motor shaft		2	2	2	2	2	2
7	NSR.011	Retaining ring	AS 75 x 4	For PTO shaft		2	2	2	2	2	2
8	NLG.027	Cylindrical roller bearing		DIN 471		2	2	2	2	2	2
9	PRS.A001.N1	Distance sleeve				2	2	2	2	2	2
10	PZH.A004	Gear		Gear floating bearing		2	2	2	2	2	2
11	PRS.A002	Distance sleeve				2	2	2	2	2	2
12	PFL.A016	Fixing sheet for bearing		Gear fixed bearing		4	4	4	4	4	4
13	NUS.066	Lock washer	10.5			8	8	8	8	8	8
14	NSK.027	Hexagon head screw	M10 x 25	DIN 432		8	8	8	8	8	8
15	NLG.025	Spherical roller bearing		DIN 933		2	2	2	2	2	2
PTO shaft Position 17-19
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
17/ 18	PWQ.A009.N1	PTO shaft	92-S6			2	-	-	-	-	-
17/ 18	PWQ.A039	PTO shaft	92-S6	Hardened		2	-	-	-	-	-
17/ 18	PWQ.A040	PTO shaft	130-S6	Hardened		-	2	-	-	-	-
17/ 18	PWQ.A041	PTO shaft	184-S6	Hardened		-	-	2	-	-	-
17/ 18	PWQ.A042	PTO shaft	260-S6	Hardened		-	-	-	2	-	-
17/ 18	PWQ.A023.N1	PTO shaft	92-P6			2	-	-	-	-	-
17/ 18	PWQ.A024.N1	PTO shaft	130-P6			-	2	-	-	-	-
17/ 18	PWQ.A025.N1	PTO shaft	184-P6			-	-	2	-	-	-
17/ 18	PWQ.A026.N1	PTO shaft	260-P6			-	-	-	2	-	-
17/ 18	PWQ.A027.N1	PTO shaft	368-P6			-	-	-	-	2	-
17/ 18	PWQ.A032.N1	PTO shaft	390-P6			-	-	-	-	-	2
17/ 18	PWQ.A016.N1	PTO shaft	260-P20			-	-	-	2	-	-
17/ 18	PWQ.A033.N1	PTO shaft	390-P20			-	-	-	-	-	2
Motor shaft Position 17-19
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
17	PWQ.A005.N1	Motor shaft	92	Short		1	-	-	-	-	-
17	PWQ.A006.N1	Motor shaft	130	Short		-	1	-	-	-	-
17	PWQ.A007.N1	Motor shaft	184	Short		-	-	1	-	-	-
17	PWQ.A008.N1	Motor shaft	260	Short		-	-	-	1	-	-
17	PWQ.A018.N1	Motor shaft	368	Short		-	-	-	-	1	-
17	PWQ.A037.N1	Motor shaft	390	Short		-	-	-	-	-	1
18	PWQ.A001.N1	Motor shaft	92	Long		1	-	-	-	-	-
18	PWQ.A002.N1	Motor shaft	130	Long		-	1	-	-	-	-
18	PWQ.A003.N1	Motor shaft	184	Long		-	-	1	-	-	-
18	PWQ.A004.N1	Motor shaft	260	Long		-	-	-	1	-	-
18	PWQ.A017.N1	Motor shaft	368	Long		-	-	-	-	1	-
18	PWQ.A038.N1	Motor shaft	390	Long		-	-	-	-	-	1
18	PWQ.A005.N1.H	Hollow shaft (7	92			1	-	-	-	-	-
18	PWQ.A006.N1.H	Hollow shaft (7	130			-	1	-	-	-	-
18	PWQ.A007.N1.H	Hollow shaft (7	184			-	-	1	-	-	-
18	PWQ.A008.N1.H	Hollow shaft (7	260			-	-	-	1	-	-
18	PWQ0001	Hollow shaft (7	368			-	-	-	-	1	-
18	PWQ0029	Hollow shaft (7	390			-	-	-	-	-	1
Fitting key Position 1-15
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
19	NPF.047	Fitting key	B 18 x 11 x 100	For motor shaft long		1	1	1	1	1	1
20	NPF.040	Fitting key	B 22 x 14 x 50	DIN 6885		2	2	2	2	2	2
21	NPF.040	Fitting key	B 22 x 14 x 50	DIN 6885		2	-	-	-	-	2
21	NPF.042	Fitting key	B 22 x 14 x 90	DIN 6885		-	2	-	-	-	-
21	NPF.043	Fitting key	B 22 x 14 x 100 D	DIN 6885		-	-	-	-	2	6
21	NPF.044	Fitting key	B 22 x 14 x 140	DIN 6885		-	-	2	-	-	-
21	NPF.045	Fitting key	B 22 x 14 x 220	DIN 6885		-	-	-	2	2	-
Bearing seal housing + accessories Positions 22-26 + 38-39
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
22	DOR.026	O-ring	330 x 6	NBR 70		1	1	1	1	1	1
22	DOR.026.VI	O-ring	330 x 6	FPM		1	1	1	1	1	1
23	PGP.A018.T1	Bearing seal housing				1	1	1	1	1	1
23	PGP.A018.T4	Bearing seal housing		Option: intermediate flange		1	1	1	1	1	1
24	DKR.005	Copper ring	C 16 x 22 x 2			10	10	10	10	10	10
25	NSK.081	Screw plug	M16 x 1,5			7	7	7	7	7	7
26	NSK.088	Screw plug	M16	Magnetic		2	2	2	2	2	2
38	PRS.A028	Plug disk		For motor shaft		1	1	1	1	1	1
39	DOR.044	O-ring	85 x 2.5	For motor shaft short		1	1	1	1	1	1
39	DOR.044.VI	O-ring	85 x 2.5	For motor shaft short		1	1	1	1	1	1
Wear plate Position 41
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
41	PFL.A017					1	1	1	1	1	1
41	PFL.A017.G1			Tungsten carbide coated		1	1	1	1	1	1
Pump housing segment Position 44
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
44	PGP.A007	Pump housing segment	92	0.6025		2	-	-	-	-	-
44	PGP.A008	Pump housing segment	130	0.6025		-	2	-	-	-	2
44	PGP.A009	Pump housing segment	184	0.6025		-	-	2	-	4	-
44	PGP.A010	Pump housing segment	260	0.6025		-	-	-	2	-	2
44	PGP.A007.G1	Pump housing segment	92	Tungsten carbide coated		2	-	-	-	-	-
44	PGP.A008.G1	Pump housing segment	130	Tungsten carbide coated		-	2	-	-	-	2
44	PGP.A009.G1	Pump housing segment	184	Tungsten carbide coated		-	-	2	-	4	-
44	PGP.A010.G1	Pump housing segment	260	Tungsten carbide coated		-	-	-	2	-	2
44	PGP.A007.G2	Pump housing segment	92	EN-JS-1110 (ADI)		2	-	-	-	-	-
44	PGP.A008.G2	Pump housing segment	130	EN-JS-1110 (ADI)		-	2	-	-	-	2
44	PGP.A009.G2	Pump housing segment	184	EN-JS-1110 (ADI)		-	-	2	-	4	-
44	PGP.A010.G2	Pump housing segment	260	EN-JS-1110 (ADI)		-	-	-	2	-	2
Injection I
44	PGP.A040	Pump housing segment	92	0.6025		2	-	-	-	-	-
44	PGP.A041	Pump housing segment	130	0.6025		-	2	-	-	-	2
44	PGP.A042	Pump housing segment	184	0.6025		-	-	2	-	4	-
44	PGP.A043	Pump housing segment	260	0.6025		-	-	-	2	-	2
44	PGP.A040.G1	Pump housing segment	92	Tungsten carbide coated		2	-	-	-	-	-
44	PGP.A041.G1	Pump housing segment	130	Tungsten carbide coated		-	2	-	-	-	2
44	PGP.A042.G1	Pump housing segment	184	Tungsten carbide coated		-	-	2	-	4	-
44	PGP.A043.G1	Pump housing segment	260	Tungsten carbide coated		-	-	-	2	-	2
44	PGP.A040.G2	Pump housing segment	92	EN-JS-1110 (ADI)		2	-	-	-	-	-
44	PGP.A041.G2	Pump housing segment	130	EN-JS-1110 (ADI)		-	2	-	-	-	2
44	PGP.A042.G2	Pump housing segment	184	EN-JS-1110 (ADI)		-	-	2	-	4	-
44	PGP.A043.G2	Pump housing segment	260	EN-JS-1110 (ADI)		-	-	-	2	-	2
Injection II
44	PGP0089	Pump housing segment	92	0.6025		2	-	-	-	-	-
44	PGP0086	Pump housing segment	130	0.6025		-	2	-	-	-	2
44	PGP0087	Pump housing segment	184	0.6025		-	-	2	-	4	-
44	PGP0088	Pump housing segment	260	0.6025		-	-	-	2	-	2
44	PGP0196	Pump housing segment	92	Tungsten carbide coated		2	-	-	-	-	-
44	PGP0188	Pump housing segment	130	Tungsten carbide coated		-	2	-	-	-	2
44	PGP0200	Pump housing segment	260	Tungsten carbide coated		-	-	-	2	-	2
44	PGP0113	Pump housing segment	92	EN-JS-1110 (ADI)		2	-	-	-	-	-
44	PGP0080	Pump housing segment	130	EN-JS-1110 (ADI)		-	2	-	-	-	2
44	PGP0114	Pump housing segment	184	EN-JS-1110 (ADI)		-	-	2	-	4	-
44	PGP0115	Pump housing segment	260	EN-JS-1110 (ADI)		-	-	-	2	-	2
Gasket for pump housing segment Position 46
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
46	DAD.028	Gasket		Asbestos-free fibre material		4	4	4	4	4	4
Screws and accessories Position 47-50
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
47	NUS.005	Washer	A 13 x 24 x 2.5	DIN 125		44	48	48	48	72	72
48	NMK.002	Hex nut	M12	Self-locking		24	24	24	24	36	36
49	NSP.022	Dowel pin	16 x 50	DIN 7346		4	4	4	4	4	4
50	NSK.176	Hex head screw	M12 x 75			12	12	12	12	12	12
HiFlo Position 51
HiFlo SBR
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
51	PKD.A040.TL	Rotary lobe	92, 4K45L HiFlo	SBR70		1	-	-	-	-	-
51	PKD.A040.TR	Rotary lobe	92, 4K45R HiFlo	SBR70		1	-	-	-	-	-
51	PKD.A031.TL	Rotary lobe	130, 4K45L HiFlo	SBR70		-	1	-	2 (1)	-	3
51	PKD.A031.TR	Rotary lobe	130, 4K45R HiFlo	SBR70		-	1	-	2 (1)	-	3
51	PKD.A025.TL	Rotary lobe	184, 4K45L HiFlo	SBR70		-	-	1	-	2 (1)	-
51	PKD.A025.TR	Rotary lobe	184, 4K45R HiFlo	SBR70		-	-	1	-	2 (1)	-
HiFlo NBR
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
51	PKD.A039.TL	Rotary lobe	92, 4K45L HiFlo	NBR70		1	-	-	-	-	-
51	PKD.A039.TR	Rotary lobe	92, 4K45R HiFlo	NBR70		1	-	-	-	-	-
51	PKD.A030.TL	Rotary lobe	130, 4K45L HiFlo	NBR70		-	1	-	2 (1)	-	3
51	PKD.A030.TR	Rotary lobe	130, 4K45R HiFlo	NBR70		-	1	-	2 (1)	-	3
51	PKD.A024.TL	Rotary lobe	184, 4K45L HiFlo	NBR70		-	-	1	-	2 (1)	-
51	PKD.A024.TR	Rotary lobe	184, 4K45R HiFlo	NBR70		-	-	1	-	2 (1)	-
HiFlo EPDM
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
51	PKD.A047.TL	Rotary lobe	92, 4K45L HiFlo	EPDM-SL		1	-	-	-	-	-
51	PKD.A047.TR	Rotary lobe	92, 4K45R HiFlo	EPDM-SL		1	-	-	-	-	-
51	PKD.A048.TL	Rotary lobe	130, 4K45L HiFlo	EPDM-SL		-	1	-	2 (1)	-	3
51	PKD.A048.TR	Rotary lobe	130, 4K45R HiFlo	EPDM-SL		-	1	-	2 (1)	-	3
51	PKD.A049.TL	Rotary lobe	184, 4K45L HiFlo	EPDM-SL		-	-	1	-	2 (1)	-
51	PKD.A049.TR	Rotary lobe	184, 4K45R HiFlo	EPDM-SL		-	-	1	-	2 (1)	-
HiFlo FPM
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
51	PKD.A044.TL	Rotary lobe	92, 4K45L HiFlo	FPM (1		1	-	-	-	-	-
51	PKD.A044.TR	Rotary lobe	92, 4K45R HiFlo	FPM (1		1	-	-	-	-	-
51	PKD.A034.TL	Rotary lobe	130, 4K45L HiFlo	FPM (1		-	1	-	2 (1)	-	3
51	PKD.A034.TR	Rotary lobe	130, 4K45R HiFlo	FPM (1		-	1	-	2 (1)	-	3
51	PKD.A028.TL	Rotary lobe	184, 4K45L HiFlo	FPM (1		-	-	1	-	2 (1)	-
51	PKD.A028.TR	Rotary lobe	184, 4K45R HiFlo	FPM (1		-	-	1	-	2 (1)	-
HiFlo WEROBUST
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
51	PKD.A041.TL	Rotary lobe	92, 4K45L HiFlo	WEROBUST (2		1	-	-	-	-	-
51	PKD.A041.TR	Rotary lobe	92, 4K45R HiFlo	WEROBUST (2		1	-	-	-	-	-
51	PKD.A032.TL	Rotary lobe	130, 4K45L HiFlo	WEROBUST (2		-	1	-	2 (1)	-	3
51	PKD.A032.TR	Rotary lobe	130, 4K45R HiFlo	WEROBUST (2		-	1	-	2 (1)	-	3
51	PKD.A026.TL	Rotary lobe	184, 4K45L HiFlo	WEROBUST (2		-	-	1	-	2 (1)	-
51	PKD.A026.TR	Rotary lobe	184, 4K45R HiFlo	WEROBUST (2		-	-	1	-	2 (1)	-
HiFlo plus Position 54
HiFlo SBR
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
54		Rotary lobe	130, 4K45L HiFloplus	SBR70		-	-	-	(1)	-	-
54		Rotary lobe	130, 4K45R HiFloplus	SBR70		-	-	-	(1)	-	-
54		Rotary lobe	184, 4K45L HiFloplu	SBR70		-	-	-	-	(1)	-
54		Rotary lobe	184, 4K45R HiFloplus	SBR70		-	-	-	-	(1)	-
HiFlo NBR
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
54	PKD0019	Rotary lobe	130, 4K45L HiFloplus	NBR70		-	-	-	(1)	-	-
54	PKD0020	Rotary lobe	130, 4K45R HiFloplus	NBR70		-	-	-	(1)	-	-
54	PKD0017	Rotary lobe	184, 4K45L HiFloplus	NBR70		-	-	-	-	(1)	-
54	PKD0018	Rotary lobe	184, 4K45R HiFloplus	NBR70		-	-	-	-	(1)	-
HiFlo EPDM
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
54	PKD0050	Rotary lobe	130, 4K45L HiFloplus	EPDM-SL		-	-	-	(1)	-	-
54	PKD0051	Rotary lobe	130, 4K45R HiFloplus	EPDM-SL		-	-	-	(1)	-	-
54	PKD0031	Rotary lobe	184, 4K45L HiFloplus	EPDM-SL		-	-	-	-	(1)	-
54	PKD0032	Rotary lobe	184, 4K45R HiFloplus	EPDM-SL		-	-	-	-	(1)	-
HiFlo FPM
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
54		Rotary lobe	130, 4K45L HiFloplus	FPM (1		-	-	-	(1)	-	-
54		Rotary lobe	130, 4K45R HiFloplus	FPM (1		-	-	-	(1)	-	-
54		Rotary lobe	184, 4K45L HiFloplus	FPM (1		-	-	-	-	(1)	-
54		Rotary lobe	184, 4K45R HiFloplus	FPM (1		-	-	-	-	(1)	-
HiFlo WEROBUST
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
54		Rotary lobe	130, 4K45L HiFloplus	WEROBUST (2		-	-	-	(1)	-	-
54		Rotary lobe	130, 4K45R HiFloplus	WEROBUST (2		-	-	-	(1)	-	-
54	PKD0064	Rotary lobe	184, 4K45L HiFloplus	WEROBUST (2		-	-	-	-	(1)	-
54	PKD0065	Rotary lobe	184, 4K45R HiFloplus	WEROBUST (2		-	-	-	-	(1)	-
Rotary lobes; bi-lobe Position 51
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
51	PKD.A002	Rotary lobe, bi-lobe	92	SBR		2	-	4	-	8	-
51	PKD.A001	Rotary lobe, bi-lobe	130	SBR		-	2	-	4	-	6
51	PKD.A004	Rotary lobe, bi-lobe	92	NBR		2	-	4	-	8	-
51	PKD.A003	Rotary lobe, bi-lobe	130	NBR		-	2	-	4	-	6
51	PKD.A004.W	Rotary lobe, bi-lobe	92	NBR white		2	-	4	-	8	-
51	PKD.A003.W	Rotary lobe, bi-lobe	130	NBR white		-	2	-	4	-	6
51	PKD.A006.SL	Rotary lobe, bi-lobe	92	EPDM-SL		2	-	4	-	8	-
51	PKD.A005.SL	Rotary lobe, bi-lobe	130	EPDM-SL		-	2	-	4	-	6
51	PKD.A006.W	Rotary lobe, bi-lobe	92	EPDM white		2	-	4	-	8	-
51	PKD.A005.W	Rotary lobe, bi-lobe	130	EPDM white		-	2	-	4	-	6
51	PKD.A008	Rotary lobe, bi-lobe	92	FPM (1		2	-	4	-	8	-
51	PKD.A007	Rotary lobe, bi-lobe	130	FPM (1		-	2	-	4	-	6
51	PKD.A009	Rotary lobe, bi-lobe	92	WEROBUST (2		2	-	4	-	8	-
51	PKD.A010	Rotary lobe, bi-lobe	130	WEROBUST (2		-	2	-	4	-	6
51	PKD.A011.N1	Rotary lobe, bi-lobe (3	92	1.0503 nitrided (C45)		2	-	4	-	8	-
51	PKD.A012.N1	Rotary lobe, bi-lobe (3	130	1.0503 nitrided (C45)		-	2	-	4	-	6
51	PKD0088	Rotary lobe, bi-lobe (3	92	1.7131 hardened		2	-	4	-	8	-
51		Rotary lobe, bi-lobe (3	130	1.7131 hardened		-	2	-	4	-	6
Solid material rotary lobes HiFlo Position 51
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
51	PKD.A035.N1.TL	Rotary lobe (3	92, 4K45L	1.0503 nitrided (C45)		1	-	-	-	-	-
51	PKD.A035.N1.TR	Rotary lobe (3	92, 4K45R	1.0503 nitrided (C45)		1	-	-	-	-	-
51	PKD.A036.N1.TL	Rotary lobe (3	130, 4K45L	1.0503 nitrided (C45)		-	1	-	2 (1)	-	3
51	PKD.A036.N1.TR	Rotary lobe (3	130, 4K45R	1.0503 nitrided (C45)		-	1	-	2 (1)	-	3
51	PKD.A037.N1.TL	Rotary lobe (3	184, 4K45L	1.0503 nitrided (C45)		-	-	1	-	2 (1)	-
51	PKD.A037.N1.TR	Rotary lobe (3	184, 4K45R	1.0503 nitrided (C45)		-	-	1	-	2 (1)	-
51	PKD0058	Rotary lobe (3	92, 4K45L	1.7131 hardened		1	-	-	-	-	-
51	PKD0059	Rotary lobe (3	92, 4K45R	1.7131 hardened		1	-	-	-	-	-
51		Rotary lobe (3	130, 4K45L	1.7131 hardened		-	1	-	2 (1)	-	3
51		Rotary lobe (3	130, 4K45R	1.7131 hardened		-	1	-	2 (1)	-	3
51	PKD0052	Rotary lobe (3	184, 4K45L	1.7131 hardened		-	-	1	-	2 (1)	-
51	PKD0053	Rotary lobe (3	184, 4K45R	1.7131 hardened		-	-	1	-	2 (1)	-
O-ring for solid material lobes Position 52-53
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
52	DOR.085	O-ring (5	104 x 3	NBR		2	2	2	2	2	2
52	DOR.085.EP	O-ring (5	104 x 3	EPDM		2	2	2	2	2	2
52	DOR.085.VI	O-ring (5	104 x 3	FPM		2	2	2	2	2	2
52	DOR.085.PT	O-ring (5	104 x 3	Silicone FEP coated		2	2	2	2	2	2
53	DOR.163	O-ring (5	103 x 5	NBR		-	-	0 2 (9	2	2 6 (9	4
53	DOR.163.EP	O-ring (5	103 x 5	EPDM		-	-	0 2 (9	2	2 6 (9	4
53	DOR.163.VI	O-ring (5	103 x 5	FPM		-	-	0 2 (9	2	2 6 (9	4
53	DOR.163.PT	O-ring (5	103 x 5	Silicone FEP coated		-	-	0 2 (9	2	2 6 (9	4
HiFlo plus Position 54
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
54		Rotary lobe (3	130, 4K45L HiFloplus	1.0503 nitrieded (C45)		-		-	(1)	-	-
54		Rotary lobe (3	130, 4K45R HiFloplus	1.0503 nitrieded (C45)		-		-	(1)	-	-
54	PKD0042	Rotary lobe (3	184, 4K45L HiFloplus	1.0503 nitrieded (C45)		-	-	-	-	(1)	-
54	PKD0043	Rotary lobe (3	184, 4K45R HiFloplus	1.0503 nitrieded (C45)		-	-	-	-	(1)	-
54		Rotary lobe (3	130, 4K45L HiFloplus	1.7131 hardened		-		-	(1)	-	-
54		Rotary lobe (3	130, 4K45R HiFloplus	1.7131 hardened		-		-	(1)	-	-
54		Rotary lobe (3	184, 4K45L HiFloplus	1.7131 hardened		-	-	-	-	(1)	-
54		Rotary lobe (3	184, 4K45R HiFloplus	1.7131 hardened		-	-	-	-	(1)	-
Preload Position 55-56
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
55	DOR.021	O-ring	24 x 3	NBR		2	2	2	2	2	2
55	DOR.021.EP	O-ring	24 x 3	EPDM		2	2	2	2	2	2
55	DOR.021.VI	O-ring	24 x 3	FPM		2	2	2	2	2	2
55	DOR.021.PT	O-ring	24 x 3	Silicone FEP coated		2	2	2	2	2	2
56	PRS.102	Strain screw	M16			2	2	2	2	2	2
Cover flange and accessories Position 57-64
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
57	PGP.A005	Cover flange				1	1	1	1	*	*
57	PGP.A005.T1	Cover flange		With feet		*	*	*	*	1	1
58	NKS.006	Lifting eye bolt	M12			2	2	2	2	2	2
59	NSP.014	Spring pin	16 x 30			4	4	4	4	4	4
60	NSK.046	Hex head screw	M12 x 60			8	8	8	8	8	8
61	PRS.A015	Distance nut	M12			4	4	4	4	4	4
62	NSK0032	Hex head screw	M12 x 95			-	4	4	4	4	4
62	NGS.002	Threaded rod	M12			4x 115 mm	-	-	-	-	-
63	DOR.052	Threaded rod	368 x 6	NBR		1	1	1	1	1	1
63	DOR.052.EP	O-ring	368 x 6	EPDM		1	1	1	1	1	1
63	DOR.052.VI	O-ring	368 x 6	FPM		1	1	1	1	1	1
63	DOR.052.PT	O-ring	368 x 6	Silicone FEP coated		1	1	1	1	1	1
For option intermediate flange:
63	DOR.052	O-ring	368 x 6	NBR		2	2	2	2	2	2
63	DOR.052.EP	O-ring	368 x 6	EPDM		2	2	2	2	2	2
63	DOR.052.VI	O-ring	368 x 6	FPM		2	2	2	2	2	2
63	DOR.052.PT	O-ring	368 x 6	Silicone FEP coated		2	2	2	2	2	2
64	NSK.025.EE	Hexagon head screw	M10 x 16			4	4	4	4	4	4
Wear plate Position 65
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
65	PFL.A002	Wear plate				1	1	1	1	1	1
65	PFL.A002.G1	Wear plate		Tungsten carbide coated		1	1	1	1	1	1
Cover and accessories Ersa Position 66-71
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
66	PGP.A006	Cover				1	1	1	1	1	1
67	NSK.080	Hexagon head screw plug	M10 x 1	For motor shaft		4	4	4	4	4	4
67	NKS.001	Grease nipple	M10 x 1	For PTO shaf		4	4	4	4	4	4
68	DKR.001	Copper ring	C 10 x 16 x 1	For motor shaft		4	4	4	4	4	4
	BKA.001	Grease nipple cap		For PTO shaft		4	4	4	4	4	4
70	NMS.004	Hexagon nut	M12	DIN 934-8		4	-	-	-	-	-
71	NFR.004	Lock washer	ø 12	DIN 127		4	-	-	-	-	-
Buffer chamber enlargement Position 74
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
74	PSG.014	Buffer fluid tank		Pressurized	1	1	1	1	1	1	1
74	PSG.014.T1	Quenching fluid tank		Ventilated (option)	1	1	1	1	1	1	1
74	PSV.002.N1	Pressure valve		(Option)	1	1	1	1	1	1	1
Option: intermediate flange Position 72-73 + 75-78
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
72	NSK.001	Hexagon head screw	M10 x 30	DIN 933	2	2	2	2	2
73	NFR.003	Lock washer	B Ø10	DIN 127	2	2	2	2	2
75	NSK.179.E	Hexagon head screw plug	M10 x 1.5	DIN 906	2	2	2	2	2
76	PGP.A036.N1	Intermediate flange			1	1	1	1	1
77	NSI.096.EE	Hexagon socket head cap screw	M10 x 18	DIN 931	1	1	1	1	1
78	DOR.040	O-ring	12 x 2	NBR	1	1	1	1	1
78	DOR.040.EP	O-ring	12 x 2	EPDM	1	1	1	1	1
78	DOR.040.VI	O-ring	12 x 2	FPM	1	1	1	1	1
78	DOR.040.PT	O-ring	12 x 2	Silicon FEP coated	1	1	1	1	1
Cartridge mechanical seal Pos. 79
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
Steel, nitrided
79	PBT.A002	Cartridge mechanical seal		SiSiC / HNBR		2	2	2	2	2	2
79	PBT.A003	Cartridge mechanical seal		SiSiC / FPM		2	2	2	2	2	2
79	PBT.A004	Cartridge mechanical seal		Duronit (4 / HNBR		2	2	2	2	2	2
79	PBT.A005	Cartridge mechanical seal		Duronit (4 / FPM		2	2	2	2	2	2
79	PBT.A008	Cartridge mechanical seal		SiSiC / EPDM		2	2	2	2	2	2
79	PBT.A012	Cartridge mechanical seal block ring; single-mechanical seal		SiSiC / HNBR		2	2	2	2	2	2
79	PBT.A013	Cartridge mechanical seal block ring; single-mechanical seal		SiSiC / FPM		2	2	2	2	2	2
79	PBT.A014	Cartridge mechanical seal block ring; single-mechanical seal		Carbon / HNBR		2	2	2	2	2	2
79	PBT.A015	Cartridge mechanical seal block ring; single-mechanical seal		Carbon / FPM		2	2	2	2	2	2
79	PBT.A016	Cartridge mechanical seal block ring; single-mechanical seal		Carbon / EPDM		2	2	2	2	2	2
79	PBT.A021	Cartridge mechanical seal block ring; single-mechanical seal		Duronit (4 / HNBR		2	2	2	2	2	2
79	PBT.A036	Cartridge mechanical seal block ring; single-mechanical seal		Duronit (4 / FPM		2	2	2	2	2	2
"Loose parts” for Cartridge mechanical sea
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
A	DOR.027	O-ring	144 x 3	NBR		1	1	1	1	1	1
A	DOR.027.VI	O-ring	144.5 x 3	FPM		1	1	1	1	1	1
B	DOR.027	O-ring	144 x 3	NBR		2	2	2	2	2	2
B	DOR.027.EP	O-ring	144.5 x 3	EPDM		2	2	2	2	2	2
B	DOR.027.VI	O-ring	144.5 x 3	FPM		2	2	2	2	2	2
B	DOR.027.PT	O-ring	144 x 3	Silicone FEP coated		2	2	2	2	2	2
C	DOR.044	O-ring	85 x 2.5	NBR		1	1	1	1	1	1
C	DOR.044.VI	O-ring	85 x 2.5	FPM		1	1	1	1	1	1
D	NUS.044	Shim	94.5 x 85.5 x 0.75			1	1	1	1	1	1
Screws and accessories Ersa Pos. 87-88
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
87	NSP.024	Dowel pin	16 x 26	DIN 7346	-	-	-	-	-	4	4
88	NSK.053	Hex head screw	M12 x 55	DIN 931	-	-	-	-	-	12	12
Preload Position 90-93
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
90	NST.017	Plug				2	2	2	2	2	2
91	NTF.003	Spring washer	100 x 51 x 6			2	2	2	2	2	2
92	PRS.A009.N1	Pressure disk				2	2	2	2	2	2
93	DOR.045	O-ring	92 x 4	NBR
93	DOR.045.EP	O-ring	92 x 4	EPDM
93	DOR.045.VI	O-ring	92 x 4	FPM
93	DOR.045.PT	O-ring	92 x 4	Silicone FEP coated
Component mechanical seal Pos. 200-213
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
199	NGS.080.E	Hexagon socket set screw	M6 x 6	DIN 913		4	4	4	4	4	4
200	PRS.A026.N1.T1	Seal carrier				2	2	2	2	2	2
201	DOR.027	O-ring	144 x 3	NBR 70		2	2	2	2	2	2
201	DOR.027.VI	O-ring	144 x 3	FPM		2	2	2	2	2	2
202	DOR.027	O-ring	144 x 3	NBR		4	4	4	4	4	4
202	DOR.027.EP	O-ring	144,5 x 3	EPDM		4	4	4	4	4	4
202	DOR.027.VI	O-ring	144,5 x 3	FPM		4	4	4	4	4	4
202	DOR.027.PT	O-ring	144 x 3	Silicone FEP-coated		4	4	4	4	4	4
203	DOR.044	O-ring	85 x 2,5; NBR			4	4	4	4	4	4
203	DOR.044.VI	O-ring	85 x 2,5; FPM			4	4	4	4	4	4
204	NUS.044	Shim	94.5 x 85.5 x 0.75			2	2	2	2	2	2
		For seal ring DGL.A013
205	DOR.033.HNB	O-ring	99 x 7,7	NBR		4	4	4	4	4	4
205	DOR.033.VI	O-ring	99 x 7,7	FPM		4	4	4	4	4	4
205	DOR.033.SI	O-ring	99 x 7,7	Silicone Check resistance!		4	4	4	4	4	4
		For seal ring DGL.A013.SC
205	DOR.091.HNB	O-ring	99 x 8	NBR		4	4	4	4	4	4
205	DOR.091 VI	O-ring	99 x 8	FPM		4	4	4	4	4	4
205	DOR.091.SI	O-ring	99 x 8	Silicone Check resistance!		4	4	4	4	4	4
206	DGL.A013	Seal ring		Duronit (4		4	4	4	4	4	4
206	DGL.A013.SC	Seal ring		Silicon carbide		4	4	4	4	4	4
209	NSR.028	Circlip	120 x 6 x 1			4	4	4	4	4	4
210	DWD.067	Radial shaft seal ring	95 x 120 x 12			2	2	2	2	2	2
211	PRS.A041	Rotationg ring				2	2	2	2	2	2
212	PRS.A027	Distance ring				2	2	2	2	2	2
213	PRS.A025.N2	Adjusting ring				2	2	2	2	2	2
Tools
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
Cartridge mechanical seal:
	WKZ0457	Installation tool		Cartridge mechanical seal		1	1	1	1	1	1
	PBA.A014.N1	Installation tool		Inculed in WKZ0457		(1)	(1)	(1)	(1)	(1)	(1)
	NSI.057	Hexagon socket head screw	M 6 x 16	Inculed in WKZ0457		(2)	(2)	(2)	(2)	(2)	(2)
	NSK.155	Hexagon head screw	M 8 x 80	Inculed in WKZ0457		(3)	(3)	(3)	(3)	(3)	(3)
Component mechanical seal:
	PBA.A010	Installation tool		Mechanical seal ring support (PRS.A026.N1.T1)		x	x	-	-	-	-
	PBA.A006.N1	Installation tool		Mechanical seal [DGL.A013)		-	-	x	x	-	-
	PBA.A001.TK	Lobe puller	92 + 130			-	-	-	-	x	x
	PBA.A001.TL	Lobe puller	184 + 260
	PBA.A001.T1	Lobe puller	352 + 390
	PBA.A011	Installation tool		Radial shaft seal ring (DWD.049)
	PBA.A012	Installation tool		Inner ring (NIR.014)
	PGP.A015	Installation tool		Bearing seal housing (PGP.A018.T2)
	WKZ0106	Tool box	VX186Q			x	x	x	x	-	-
	PBA.027	Combination tool				x	x	x	x	x	-
Material for connectors
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
	NSK.001	Hex head screw	M10 x 30	DIN 933		24	28	32	36	40	44
	NUS.004	Washer	A 10.5 x 20 x 2	DIN 125		24	28	32	36	40	44
	DFD.070.P	Flange gasket	92			2	-	-	-	-	-
	DFD.071.P	Flange gasket	130			-	2	-	-	-	-
	DFD.072.P	Flange gasket	184			-	-	2	-	-	-
	DFD.073.P	Flange gasket	260			-	-	-	2	-	-
	DFD.074.P	Flange gasket	368			-	-	-	-	2	-
	DFD.104.P	Flange gasket	390			-	-	-	-	-	2
	PFL.120	Flange	92			2	-	-	-	-	-
	PFL.121	Flange	130			-	2	-	-	-	-
	PFL.122	Flange	184			-	-	2	-	-	-
	PFL.123	Flange	260			-	-	-	2	-	-
	PFL.124	Flange	368			-	-	-	-	2	-
	PFL.148	Flange	390			-	-	-	-	-	2
Necessary spare parts for rotary lobe change
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
21	NPF.040	Fitting key	B 22 x 14 x 50	DIN 6885		2	-	-	-	-	2
21	NPF.042	Fitting key	B 22 x 14 x 90	DIN 6885		-	2	-	-	-	-
21	NPF.043	Fitting key	B 22 x 14 x 100	DIN 6885		-	-	-	-	2	6
21	NPF.044	Fitting key	B 22 x 14 x 140	DIN 6885		-	-	2	-	-	-
21	NPF.045	Fitting key	B 22 x 14 x 220	DIN 6885		-	-	-	2	2	-
51-54		Rotary lobe		See page 10 and follow		-	-	-	-	-	-
55	DOR.021	O-ring	24 x 3	NBR		2	2	2	2	2	2
55	DOR.021.EP	O-ring	24 x 3	EPDM		2	2	2	2	2	2
55	DOR.021.VI	O-ring	24 x 3	FPM		2	2	2	2	2	2
55	DOR.021.PT	O-ring	24 x 3	Silicone FEP coated		2	2	2	2	2	2
56	PRS.102	Strain screw	M16			2	2	2	2	2	2
63	DOR.052	O-ring	368 x 6	NBR		1	1	1	1	1	1
63	DOR.052.EP	O-ring	368 x 6	EPDM		1	1	1	1	1	1
63	DOR.052.VI	O-ring	368 x 6	FPM		1	1	1	1	1	1
63	DOR.052.PT	O-ring	368 x 6	Silicone FEP coated		1	1	1	1	1	1
93	DOR.045	O-ring	92 x 4	NBR
93	DOR.045.EP	O-ring	92 x 4	EPDM
93	DOR.045.VI	O-ring	92 x 4	FPM
93	DOR.045.PT	O-ring	92 x 4	Silicone FEP coated
Necessary spare parts for Cartridge mechanical seal change
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
55	DOR.021	O-ring	24 x 3	NBR		2	2	2	2	2	2
55	DOR.021.EP	O-ring	24 x 3	EPDM		2	2	2	2	2	2
55	DOR.021.VI	O-ring	24 x 3	FPM		2	2	2	2	2	2
55	DOR.021.PT	O-ring	24 x 3	Silicone FEP coated		2	2	2	2	2	2
56	PRS.102	Strain screw	M16			2	2	2	2	2	2
63	DOR.052	O-ring	368 x 6	NBR		1	1	1	1	1	1
63	DOR.052.EP	O-ring	368 x 6	EPDM		1	1	1	1	1	1
63	DOR.052.VI	O-ring	368 x 6	FPM		1	1	1	1	1	1
63	DOR.052.PT	O-ring	368 x 6	Silicone FEP coated		1	1	1	1	1	1
Steel, nitrided
79	PBT.A002	Cartridge mechanical seal		SiSiC / HNBR		2	2	2	2	2	2
79	PBT.A003	Cartridge mechanical seal		SiSiC / FPM		2	2	2	2	2	2
79	PBT.A004	Cartridge mechanical seal		Duronit (4 / HNBR		2	2	2	2	2	2
79	PBT.A005	Cartridge mechanical seal		Duronit (4 / FPM		2	2	2	2	2	2
79	PBT.A008	Cartridge mechanical seal		SiSiC / EPDM		2	2	2	2	2	2
79	PBT.A012	Cartridge mechanical seal block ring; single-mechanical seal		SiSiC / HNBR		2	2	2	2	2	2
79	PBT.A013	Cartridge mechanical seal block ring; single-mechanical seal		SiSiC / FPM		2	2	2	2	2	2
79	PBT.A014	Cartridge mechanical seal block ring; single-mechanical seal		Carbon / HNBR		2	2	2	2	2	2
79	PBT.A015	Cartridge mechanical seal block ring; single-mechanical seal		Carbon / FPM		2	2	2	2	2	2
79	PBT.A016	Cartridge mechanical seal block ring; single-mechanical seal		Carbon / EPDM		2	2	2	2	2	2
79	PBT.A021	Cartridge mechanical seal block ring; single-mechanical seal		Duronit (4 / HNBR		2	2	2	2	2	2
79	PBT.A036	Cartridge mechanical seal block ring; single-mechanical seal		Duronit (4 / FPM		2	2	2	2	2	2
90	NST.017	Plug				2	2	2	2	2	2
93	DOR.045	O-ring	92 x 4	NBR
93	DOR.045.EP	O-ring	92 x 4	EPDM
93	DOR.045.VI	O-ring	92 x 4	FPM
93	DOR.045.PT	O-ring	92 x 4	Silicone FEP coated
Necessary spare parts for component mechanical seal change
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
55	DOR.021	O-ring	24 x 3	NBR		2	2	2	2	2	2
55	DOR.021.EP	O-ring	24 x 3	EPDM		2	2	2	2	2	2
55	DOR.021.VI	O-ring	24 x 3	FPM		2	2	2	2	2	2
55	DOR.021.PT	O-ring	24 x 3	Silicone FEP coated		2	2	2	2	2	2
56	PRS.102	Strain screw	M16			2	2	2	2	2	2
63	DOR.052	O-ring	368 x 6	NBR		1	1	1	1	1	1
63	DOR.052.EP	O-ring	368 x 6	EPDM		1	1	1	1	1	1
63	DOR.052.VI	O-ring	368 x 6	FPM		1	1	1	1	1	1
63	DOR.052.PT	O-ring	368 x 6	Silicone FEP coated		1	1	1	1	1	1
90	NST.017	Plug				2	2	2	2	2	2
93	DOR.045	O-ring	92 x 4	NBR
93	DOR.045.EP	O-ring	92 x 4	EPDM
93	DOR.045.VI	O-ring	92 x 4	FPM
93	DOR.045.PT	O-ring	92 x 4	Silicone FEP coated
201	DOR.027	O-ring	144 x 3	NBR 70		2	2	2	2	2	2
201	DOR.027.VI	O-ring	144 x 3	FPM		2	2	2	2	2	2
202	DOR.027	O-ring	144 x 3	NBR		4	4	4	4	4	4
202	DOR.027.EP	O-ring	144,5 x 3	EPDM		4	4	4	4	4	4
202	DOR.027.VI	O-ring	144,5 x 3	FPM		4	4	4	4	4	4
202	DOR.027.PT	O-ring	144 x 3	Silicone FEP coated		4	4	4	4	4	4
203	DOR.044	O-ring	85 x 2,5; NBR			4	4	4	4	4	4
203	DOR.044.VI	O-ring	85 x 2,5; FPM			4	4	4	4	4	4
204	NUS.044	Shim	94.5 x 85.5 x 0.75			2	2	2	2	2	2
		For seal ring DGL.A013				4	4	4	4	4	4
205	DOR.033.HNB		99 x 7,7	NBR		4	4	4	4	4	4
205	DOR.033.V		99 x 7,7	FPM		4	4	4	4	4	4
205	DOR.033.SI		99 x 7,7	Silicone FEP coated		4	4	4	4	4	4
		For seal ring DGL.A013.SC				4	4	4	4	4	4
205	DOR.091.HNB	O-ring	99 x 8	NBR		4	4	4	4	4	4
205	DOR.091 VI	O-ring	99 x 8	FPM		4	4	4	4	4	4
205	DOR.091.SI	O-ring	99 x 8	Silicone FEP coated		4	4	4	4	4	4
206	DGL.A013	Seal ring		Duronit (4		4	4	4	4	4	4
206	DGL.A013.SC	Seal ring		Silicon carbide		4	4	4	4	4	4
Necessary spare parts for wear part replacement with Cartridge mechanical seal
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
21	NPF.040	Fitting key	B 22 x 14 x 50	DIN 6885	2	-	-	-	-	-	2
21	NPF.042	Fitting key	B 22 x 14 x 90	DIN 6885	-	2	-	-	-	-	-
21	NPF.043	Fitting key	B 22 x 14 x 100	DIN 6885	-	-	-	-	2	2	6
21	NPF.044	Fitting key	B 22 x 14 x 140	DIN 6885	-	-	2	-	-	-	-
21	NPF.045	Fitting key	B 22 x 14 x 220	DIN 6885	-	-	-	2	2	-	-
41	PFL.A017	Wear plate			1	1	1	1	1	1	1
41	PFL.A017.G1	Wear plate		Tungsten carbide coated	1	1	1	1	1	1	1
46	DAD.028	Gasket		Asbestos-free fibre material	4	4	4	4	4	4	4
51-54		Rotary lobe		See page 10 and follow
55	DOR.021	O-ring	24 x 3	NBR	2	2	2	2	2	2	2
55	DOR.021.EP	O-ring	24 x 3	EPDM	2	2	2	2	2	2	2
55	DOR.021.VI	O-ring	24 x 3	FPM	2	2	2	2	2	2	2
55	DOR.021.PT	O-ring	24 x 3	Silicone FEP coated	2	2	2	2	2	2	2
56	PRS.102	Strain screw	M16		2	2	2	2	2	2	2
63	DOR.052	O-ring	368 x 6	NBR	1	1	1	1	1	1	1
63	DOR.052.EP	O-ring	368 x 6	EPDM	1	1	1	1	1	1	1
63	DOR.052.VI	O-ring	368 x 6	FPM	1	1	1	1	1	1	1
63	DOR.052.PT	O-ring	368 x 6	Silicone FEP coated	1	1	1	1	1	1	1
64	NSK.025.EE	Hexagon head screw	M10 x 16		4	4	4	4	4	4	4
65	PFL.A002	Wear plate			1	1	1	1	1	1	1
65	PFL.A002.G1	Wear plate		Tungsten carbide coated	1	1	1	1	1	1	1
Steel, nitrided
79	PBT.A002	Cartridge mechanical seal		SiSiC / HNBR	2	2	2	2	2	2	2
79	PBT.A003	Cartridge mechanical seal		SiSiC / FPM	2	2	2	2	2	2	2
79	PBT.A004	Cartridge mechanical seal		Duronit (4 / HNBR	2	2	2	2	2	2	2
79	PBT.A005	Cartridge mechanical seal		Duronit (4 / FPM	2	2	2	2	2	2	2
79	PBT.A008	Cartridge mechanical seal block ring; single-mechanical seal		SiSiC / EPDM	2	2	2	2	2	2	2
79	PBT.A012	Cartridge mechanical seal block ring; single-mechanical seal		SiSiC / HNBR	2	2	2	2	2	2	2
79	PBT.A013	Cartridge mechanical seal block ring; single-mechanical seal		SiSiC / FPM	2	2	2	2	2	2	2
79	PBT.A014	Cartridge mechanical seal block ring; single-mechanical seal		Carbon / HNBR	2	2	2	2	2	2	2
79	PBT.A015	Cartridge mechanical seal block ring; single-mechanical seal		Carbon / FPM	2	2	2	2	2	2	2
79	PBT.A016	Cartridge mechanical seal block ring; single-mechanical seal		Carbon / EPDM	2	2	2	2	2	2	2
79	PBT.A021	Cartridge mechanical seal block ring; single-mechanical seal		Duronit (4 / HNBR	2	2	2	2	2	2	2
79	PBT.A036	Cartridge mechanical seal block ring; single-mechanical seal		Duronit (4 / FPM	2	2	2	2	2	2	2
90	NST.017	Plug			2	2	2	2	2	2	2
93	DOR.045	O-ring	92 x 4	NBR
93	DOR.045.EP	O-ring	92 x 4	EPDM
93	DOR.045.VI	O-ring	92 x 4	FPM
93	DOR.045.PT	O-ring	92 x 4	Silicone FEP coated
Necessary spare parts for wear part replacement with component mechanical seal
Pos.	Part number	Description	Dimensions	Note	Qua.	92	130	184	260	368	390
21	NPF.040	Fitting key	B 22 x 14 x 50	DIN 6885		2	-	-	-	-	2
21	NPF.042	Fitting key	B 22 x 14 x 90	DIN 6885		-	2	-	-	-	-
21	NPF.043	Fitting key	B 22 x 14 x 100	DIN 6885		-	-	-	-	2	6
21	NPF.044	Fitting key	B 22 x 14 x 140	DIN 6885		-	-	2	-	-	-
21	NPF.045	Fitting key	B 22 x 14 x 220	DIN 6885		-	-	-	2	2	-
41	PFL.A017	Wear plate				1	1	1	1	1	1
41	PFL.A017.G1	Wear plate		Tungsten carbide coated		1	1	1	1	1	1
46	DAD.028	Gasket		Asbestos-free fibre material		4	4	4	4	4	4
51-54		Rotary lobe		See page 10 and follow
55	DOR.021	O-ring	24 x 3	NBR		2	2	2	2	2	2
55	DOR.021.EP	O-ring	24 x 3	EPDM		2	2	2	2	2	2
55	DOR.021.VI	O-ring	24 x 3	FPM		2	2	2	2	2	2
55	DOR.021.PT	O-ring	24 x 3	Silicone FEP coated		2	2	2	2	2	2
56	PRS.102	Strain screw	M16			2	2	2	2	2	2
63	DOR.052	O-ring	368 x 6	NBR		1	1	1	1	1	1
63	DOR.052.EP	O-ring	368 x 6	EPDM		1	1	1	1	1	1
63	DOR.052.VI	O-ring	368 x 6	FPM		1	1	1	1	1	1
63	DOR.052.PT	O-ring	368 x 6	Silicone FEP coated		1	1	1	1	1	1
64	NSK.025.EE	Hexagon head screw	M10 x 16			4	4	4	4	4	4
65	PFL.A002	Wear plate				1	1	1	1	1	1
65	PFL.A002.G1	Wear plate		Tungsten carbide coated		1	1	1	1	1	1
90	NST.017	Plug				2	2	2	2	2	2
93	DOR.045	O-ring	92 x 4	NBR
93	DOR.045.EP	O-ring	92 x 4	EPDM
93	DOR.045.VI	O-ring	92 x 4	FPM
93	DOR.045.PT	O-ring	92 x 4	Silicone FEP coated
201	DOR.027	O-ring	144 x 3	NBR 70		2	2	2	2	2	2
201	DOR.027.VI	O-ring	144 x 3	FPM		2	2	2	2	2	2
202	DOR.027	O-ring	144 x 3	NBR		4	4	4	4	4	4
202	DOR.027.EP	O-ring	144,5 x 3	EPDM		4	4	4	4	4	4
202	DOR.027.VI	O-ring	144,5 x 3	FPM		4	4	4	4	4	4
202	DOR.027.PT	O-ring	144 x 3	Silicone FEP coated		4	4	4	4	4	4
203	DOR.044	O-ring	85 x 2,5; NBR			4	4	4	4	4	4
203	DOR.044.VI	O-ring	85 x 2,5; FPM			4	4	4	4	4	4
204	NUS.044	Shim	94.5 x 85.5 x 0.75			2	2	2	2	2	2
		For seal ring DGL.A013
205	DOR.033.HNB	O-ring	99 x 7,7	NBR		4	4	4	4	4	4
205	DOR.033.VI	O-ring	99 x 7,7	FPM		4	4	4	4	4	4
205	DOR.033.SI	O-ring	99 x 7,7	Silicone Check resistance!		4	4	4	4	4	4
		For seal ring DGL.A013.SC
205	DOR.091.HNB	O-ring	99 x 8	NBR		4	4	4	4	4	4
205	DOR.091 VI	O-ring	99 x 8	FPM		4	4	4	4	4	4
205	DOR.091.SI	O-ring	99 x 8	Silicone Check resistance!		4	4	4	4	4	4
206	DGL.A013	Seal ring		Duronit (4		4	4	4	4	4	4
206	DGL.A013.SC	Seal ring		Silicon carbide		4	4	4	4	4	4

Шкретов ЕООД

Дистрибуция и сервиз
на индустриално оборудване

Резервни части - Rotary lobe pump VX186Q

Шкретов ЕООД

Дистрибуция и сервиз на индустриално оборудване

Меню

Свържете се с нас:

Шкретов ЕООД

Дистрибуция и сервизна индустриално оборудване

Резервни части - Rotary lobe pump VX186Q

Шкретов ЕООД

Дистрибуция и сервиз на индустриално оборудване

Меню

Свържете се с нас:

Дистрибуция и сервиз
на индустриално оборудване
